Harman Kardon 430
Twin Powered Receiver (1976)
Specifications:
Tuning range: FM, MW
Power output: 25 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.3%
Damping factor: 40
Signal to noise ratio: 65dB (line)
Speaker load impedance: 4Ω to 16Ω
Dimensions: 432 x 368 x 140mm
Weight: 10.9kg

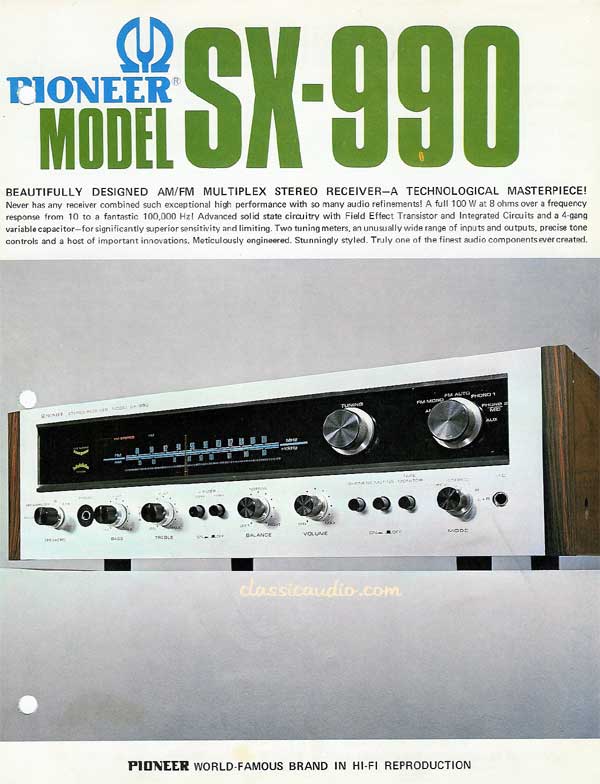

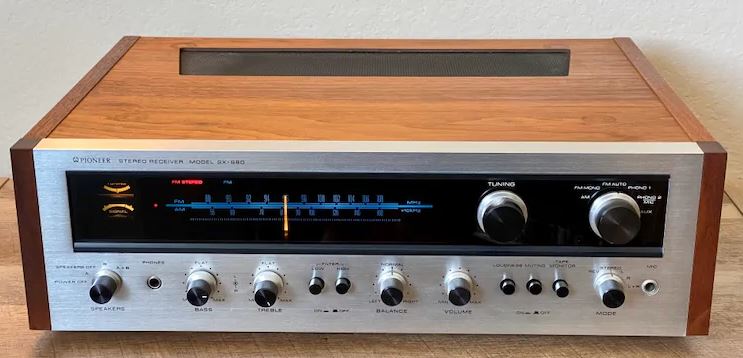

Pioneer SX-990
Solid State AM/FM Stereo Receiver (1970-71)
Specifications
Tuning range: FM, MW
Power output: 28 watts per channel into 8Ω (stereo)
Frequency response: 10Hz to 100kHz
Total harmonic distortion: 0.5%
Input sensitivity: 5mV (mic), 3.3mV (MM), 24mV (ceramic), 200mV (line)
Signal to noise ratio: 80dB (MM), 100dB (line)
Speaker load impedance: 4Ω to 16Ω
Semiconductors: 1 x FET, 36 x transistors, 5 x IC, 17 x diodes
Dimensions: 459 x 145 x 369mm
Weight: 11.4kg
…more

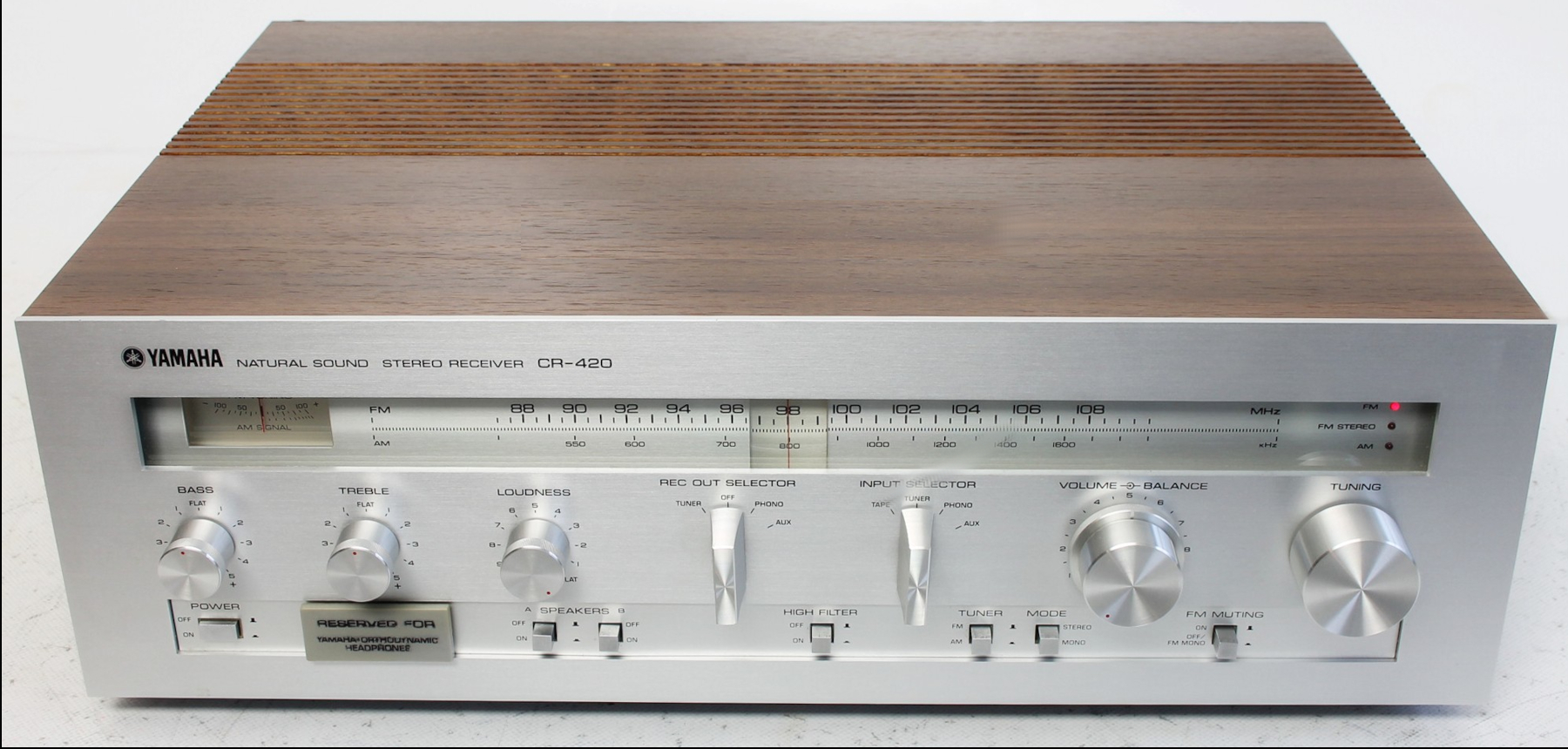

Yamaha CR-420
Solid State AM/FM Stereo Receiver (1977-80)
Tuning range: FM, MW
Power output: 22 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.05%
Damping factor: 40
Input sensitivity: 2mV (MM), 120mV (line)
Signal to noise ratio: 91dB (MM), 97dB (line)
Output: 120mV (line)
Speaker load impedance: 4Ω (minimum)
Semiconductors: 2 x IC, 1 x FET, 53 x transistors, 25 x diodes, 5 x zener diodes, 3 x LED
Dimensions: 451 x 161 x 324mm
Weight: 9kg
Dimensions: 17 3/4 in. (45 cm) W x 6 1/3in. (16 cm) H x 12 3/4 in. (32.4 cm) D.
Weight: 19 lbs. (8.6 kg)
